Name:ON-line PCBA ICT Tester I.C.T-Q588A

Model:

Brief:

PCBA ICT Tester

Content

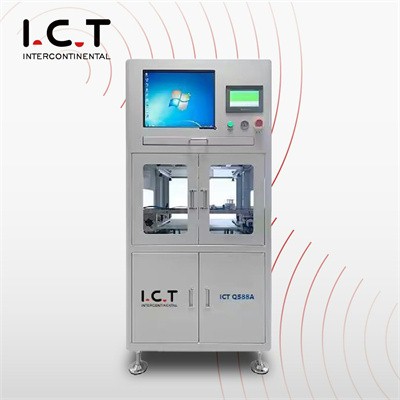

ON-line PCBA ICT Tester I.C.T-Q588A

Overview

ON-line PCBA ICT Tester I.C.T-Q588A

The test points out of the PCB layout are contacted by the test probe to detect the open circuit, short circuit and the soldering of parts, which can be divided into open circuit test, short circuit test, resistance test, capacitance test, diode test, triode test, FET test, IC pin test and other missing and wrong installation, parameter value deviation, solder joint continuous welding Circuit board open short circuit and other faults, and output the fault condition

Features of PCBA ICT Tester:

Equipped with EC jet test technology
Design of CMOS + replay switch card
True broadband test technology
Humanized win7 interface, simple operation and easy to use
Powerful board view
Five wire test technology, up to four terminal components can be tested
ATPD automatic test program debugging
Improve statistical analysis reports and effectively monitor production quality

Specifications:

Model	I.C.T-Q588A
PCB Size	500mm x 350mm(STANDARD)
Test points	256points Standard(1024points is optional)
Switch Card	128/pot
Isolated points	10 steps for each test, can automatically learn to isolate
The test speed	0.5sec/1024 points(Open/Short) 2ms ~ 40ms/step(component test)
Test range	Resistance: 0.05 Ω~ 100M Ω ( 2-wire) ± 1% - 5% (four wire) ± 10m Ω. Capacitance 1pf ~ 40MF ± 2%-5%. Inductance 1uH ~ 50H, ± 2% - 5%. Diodes 0.1 ~ 9V ± 1%-3%. Zener diode: 0.1 ~ 15V ± 1%-3%. Transistor : Measurement of VCE saturation voltage at three terminals of transistor β value. FET : Three terminal test of field effect transistor VDS, CDs, RD (on). Optical coupler and circuit breaker : four terminals to test its conduction voltage or resistance.
Featured optional features	Micro-resistor (four-wire type)：Minimum 50mΩ (four-wire) ±10mΩ DRMode：Can measure diode or IC forward parallel leakage and empty welding Key Function：The program is suspended during the key test, and the quality of the key is checked with manual operation. Automatic stamp：Test PASS or Fail automatic stamping equipment Monitor placement：Monitor placement orientation (PASS or Fail shunt) Multi-press：Multiple or double press system Thru rate monitoring：When the through rate is Graphics function：Board View & Automatic Production of Board Views Multi-board function：Panel auto-expansion & sub-panel selection & auto-detection
Power Supply	AC:220V,50/60HZ,3Kw
Dimension(mm)	10007501600 Can be customized as required
Weight	Approx:350kg

* I.C.T keeps working on quality and performance,specifications and appearance may be updated without particular notice.
