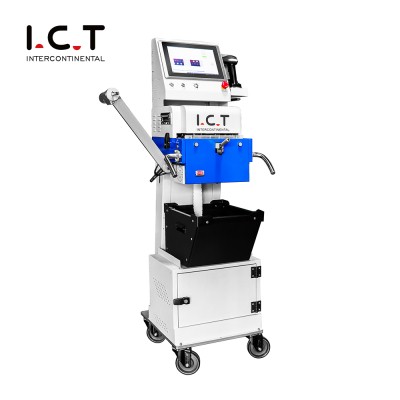

SMT Auto Splicing Machine
1.Simple operation: learn to operate in 5 minutes, everyone can operate, and reduce dependence on personnel.
2.Error proofing: automatic code scanning and error proofing, which can be connected with the customer's MES for double foolproof.
3.Empty components detection: CCD detection can identify the above 01005 .
4.Accurate traceability: connect MES production system to facilitate customer traceability.
5.Increase the production line production rate: increase the production line production rate of SMT with a probability of more than 95%.
6.Determination of measured value: RC measured value function can be selected to avoid batch wrong components.
7. Labor saving: one person operation realize two smt lines.
8. Determination of empty components level and spacing: use CCD optics to automatically detect the presence or absence of components, and
automatically and accurately calibrate the cutting position of components.
9. Recycling: after the components is received successfully, the operator will press the components reel recycling button for a long time to
realize automatic material collection, which is convenient and fast.
10. Accurate and efficient: each time only about 10s to complete.
Success rate of splicing: 99.19%
|SMT Automatic Intelligence Splicing Machine|
|Applicable Mounter||Full SMT brand|
|Splicing Mode||Auto cutting and Splicing||Splice Clip-Frame|
|Splicing Tape Size||32mm||32mm||32mm*2||45*17mm|
|Splicing Tape Package||Reel|
|Splicing Cycle Time||6-12sec (excluding manual operation and empty tape detection time)|
|Passing rate on Mounter||95%||98%||98%||99%|
|Dimension / mm||550*470*1300||400*470*1400||400*470*1400||400*460*950|
|Weight||Approx: 65KG||Approx: 65KG||Approx: 75KG||Approx: 50KG|
