SMD Production Line Auxiliary Process

From:    Author:SMD Production Line    Publish time:2020-03-12 17:41    Clicks:0
SMD Production Line Auxiliary Process

High-efficiency automation SMD production line, SMT line equipment, LED production line with high flexibility.
SMD Production Line
1. Printing red rubber: (can print red rubber at the same time)
The function is to print the red glue to the fixed position of the PCB. The main function is to fix the components to the PCB. It is generally used for PCBs with surface-mounted components on both sides and wave soldering on one side. The equipment used is printing machine solder paste and red glue printing can be completed by one machine, located at the forefront of the SMD production line.

2. Curing: (Reflow soldering is better for curing and leaded solder paste)
Its role is to heat and cure the chip adhesive, so that the surface mount components and the PCB are firmly bonded together. The equipment used is a curing oven (a reflow oven can also be used for curing adhesives and thermal aging tests of components and PCBs), located behind the placement machine in the SMD production line.

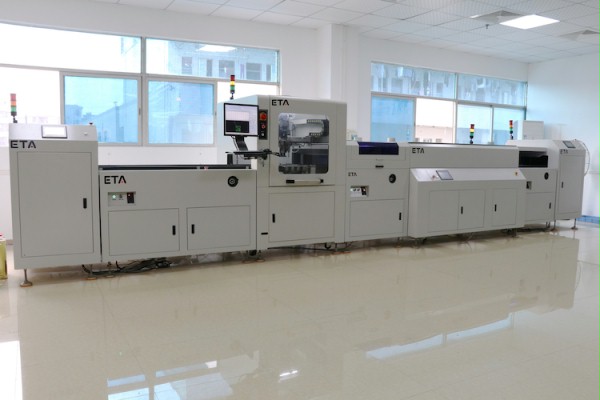

SMT PCBA Coating Line
❙ SMD Production Line Video
