Turn-key Samsung Hanwha SMT Line

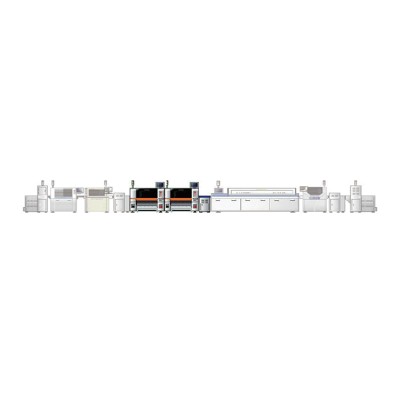

Fully automation SMT smart factory high speed SMT assembly line, LED production line, Samsung SMT line, for PCB assembly.
❙ Hanwha Pick and Place Machine
| Model | SM471plus | SM481plus | SM482plus |
| Spindles | 10 Spindles ×2 Gantry | 10 Spindles ×1 Gantry | 6 Spindles ×1 Gantry |
| Placement Speed | 78,000CPH(Optimum) | 40,000CPH(Optimum) | 30,000CPH(Optimum) |
| Placement Accuracy | ±40μm@μ±3σ | ±40μm@μ±3σ | ±40μm@μ±3σ |
| Applicable Parts | 0402 ~ 14mm(H 12mm) | 0402 ~ 42mm(H15mm) | 0402 ~ 55mm(H 15mm) |
| Applicable PCB | Max. 510(L) x 460(W)(Standard) | Max. 460(L) x400(W)(Standard) | Max. 460(L) x400(W)(Standard) |
| Max. 610(L) x 460(W)(Option) | Max. 1500(L) x 460(W)(Option) | Max. 1200(L) x 510(W)(Option) | |
| Dimension(mm) | 1650×1690×1458 | 1650×1680×1530 | 1650×1680×1458 |
❙ SMT Stencil Printer
| Model | ETA-4034 | ETA-5151 | ETA-6561 | ETA-1500(LED) |
| Frame Size(mm) | 470*370 ~ 737*737 | 470*370 ~ 737*737 | 470*370 ~ 850*850 | 470*370 ~ 1800*750 |
| PCB Size(mm) | 50*50 ~ 400*340 | 50*50 ~ 510*510 | 80*50 ~ 650*610 | 80*50 ~ 1500*350 |
| TransportDirection | Left-Right; Right-Left; Left-Left; Right-Right | |||
| Support System | Magnetic Pin/Up-down table adjusted/support block | |||
| Clamping System | Side clamping, vacuum nozzle,Automation retractable Z pressure | |||
| Printer Head | Two independent motorised printhead | |||
| Squeegee Type | Stainless steel(standard),plastic | |||
| Cleaning System | Dry, Wet, Vacuum | |||
| Inspection | 2D Inspection(Standard) | |||
| Power Supply | AC:220±10%,50/60HZ,3Kw | |||
| Control Method | PC Control | |||
| Dimension(mm) | 1220*1355*1500 | 1220*1530*1500 | 1330*1530*1500 | 2500*1220*1500 |
| Weight | Approx:1250kg | Approx:1300kg | Approx:1300kg | Approx:1800kg |
| Model | ETA-5134 | ETA-6534 | ETA-1200(LED) |
| Frame Size(mm) | 470*370 ~ 737*737 | 470*370 ~ 737*737 | 470*370 ~ 850*850 |
| PCB Size(mm) | 50*50 ~ 400*340 | 50*50 ~ 510*510 | 80*50 ~ 650*610 |
| Dimension(mm) | 1220*1355*1500 | 1330*1530*1500 | 2200*1200*1500 |
| Weight | Approx:1250kg | Approx:1300kg |
Approx:1500kg |
❙ SMT Reflow Oven
| Model | E8 | E10 |
| Dimension (L*W*H)mm | 5000x1250x1490 | 5800x1250x1490 |
| Weight | Approx. 1600KG | Approx. 1800KG |
| Number Of Heating Zones | Up8/Bottom8 | Up10/Bottom10 |
| Length Of Heating Zones | 3121mm | 3891mm |
| Rail Width Adjustment | M(option:A) | |
| Exhaust Volume | 10M3/minx2 Exhausts | |
| Control System | PLC+Computer | |
| Temperature Control Method | PID + SSR | |
| Transmission Agent | Chain + Mesh | |
| Electric Supply Required | 3 phase,380V 50/60Hz | |
| Power For Warm Up | 55KW | 64KW |
| Power Consumption | 8KW | 12KW |
| Warming Time | Approx.25 minute | |
| Temp. Setting Range | Room Temp.-- 300°C | |
| Conveyor Height | 900+/-20mm | |
| Conveyor Speed Range | 300~2000mm/mi | |
| Fixed Rail Side | Front Fixed (Option:Rear Fixed) | |
| Cooling Method | Forced-Air Motor and fan (Standard) | |
❙ Customer Factory
▽ ETA Bulgaria customer - Battery Chargers and Adapters SMT production line
▽ ETA USA customer - LED production line
❙ Company Profile
ETA is the SMT machine supplier with professional 25-year-experienced sales and after sales team, providing SMT solutions including pick and place machine, reflow oven, SMT stencil printer, SMT line and wave soldering machine.
