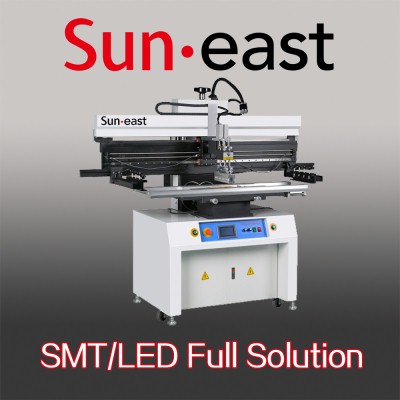

Name:Semi-auto SMT Stencil Printer
Model:Semi-auto SMT Stencil Printer
Brief:

Semi-auto SMT Stencil Printer,■ Suspension blade system makes printing more evenly.

■ Modular universal bench, thimble random placement,easy conversion.

■ With alignment device for PCB board and frame.

■ Work with both single-sided and double-sided PCB boards.

Content

Semi-auto SMT Stencil Printer

■ Using linear guide-ways,matching motor drive speed,ensure the printing stability and precision.
■ Blade pressure and printing speed is adjustable,precision pressure gauge,speed controller display.
■ Suspension blade system makes printing more evenly.
■ Modular universal bench, thimble random placement,easy conversion.
■ With alignment device for PCB board and frame.
■ Work with both single-sided and double-sided PCB boards.
■ Steel frame arms can be adjusted for different size ranges from 370 * 470mm to 1500 * 350mm .
■ Auto printing , stable and efficient printing quality.



Specifications
Smt Stencil Printer Machine
Working area
300*400-300*400mm(300*600mm,300*1200mm)
Frame size
370*470mm,420*520mm,550*650mm,1500*650mm
PCB thickness
0.2-4.0mm
Voltage
Single phase 220V,50/60Hz,100W
Accuracy
+/- 0.05mm
Machine size
L1750*W1100*Hl650mm
Gross weight
450kg
