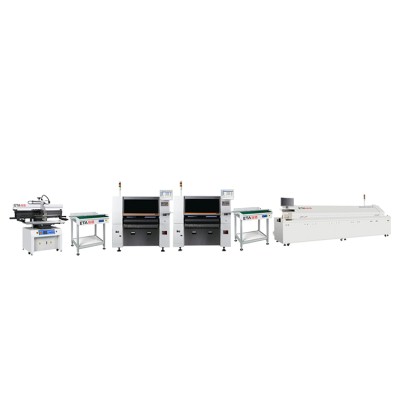

SMT Production Line
Highly flexible SMT PCB assembly line, professional solutions, best service, best price.
❙ Hanwha Pick and Place Machine
| Model | SM471plus | SM481plus | SM482plus |
| Spindles | 10 Spindles ×2 Gantry | 10 Spindles ×1 Gantry | 6 Spindles ×1 Gantry |
| Placement Speed | 78,000CPH(Optimum) | 40,000CPH(Optimum) | 30,000CPH(Optimum) |
| Placement Accuracy | ±40μm@μ±3σ | ±40μm@μ±3σ | ±40μm@μ±3σ |
| Applicable Parts | 0402 ~ 14mm(H 12mm) | 0402 ~ 42mm(H15mm) | 0402 ~ 55mm(H 15mm) |
| Applicable PCB | Max. 510(L) x 460(W)(Standard) | Max. 460(L) x400(W)(Standard) | Max. 460(L) x400(W)(Standard) |
| Max. 610(L) x 460(W)(Option) | Max. 1500(L) x 460(W)(Option) | Max. 1200(L) x 510(W)(Option) | |
| Dimension(mm) | 1650×1690×1458 | 1650×1680×1530 | 1650×1680×1458 |
❙ SMT Stencil Printer ( Semi-auto)
| Model | P3 | P6 | P12 |
| Accuracy | +/- 0.05mm | +/- 0.05mm | +/- 0.05mm |
| PCB Size | 300 x 350 mm | 600 x 350 mm | 1200 x 350 mm |
| Platform size | 300 x 350 mm | 700 x 400 mm | 1350 x 400 mm |
| Stencil Size(mm) | 370*470,550*650 | 370*470,550*650 | 370*470,550*650,1500*650 |
| PCB Thickness | 0.2 - 6 mm | 0.2 - 6 mm | 0.2 - 6 mm |
| Stencil Positioning | Manual | Manual | Manual |
| Cycle Time | < 10 Sec. | < 10 Sec. | < 12 Sec. |
| Power Consumption | 200 W | 200 W | 200 W |
| Power Supply | 1 -PH, 220VAC 50/60HZ | 1 -PH, 220VAC 50/60HZ | 1 -PH, 220VAC 50/60HZ |
| Air Pressure | 4.5-6 kg/cm | 4.5-6 kg/cm | 4.5-6 kg/cm |
| Squeegee Speed | 0-1500mm/sec | 0-1500mm/sec | 0-1500mm/sec |
| Dimension | 850x750x1650 mm | 1050x750x1650 mm | 1660x750x1650 mm |
| Weight | 280 Kg | 300 Kg | 356 Kg |
| Squeegee Length | 250mm | 250mm | 250mm |
| Platform Height | 950mm | 950mm | 950mm |
| Option: Special size can be customized | |||
❙ SMT Reflow Oven
| Model | Lyra 622 | Lyra733 | ||
| Dimension (L*W*H)mm | 5040x1450x1450 | 5800x1450x1450 | ||
| Machine Weight | Approx. 2200KG | Approx. 2400KG | ||
| Number Of Heating Zones | Up8/Bottom8 | Up10/Bottom10 | ||
| Length Of Heating Zones | 3030mm | 3730mm | ||
| Number of Cooling Zones | 2 | 3 | ||
| Control System | PLC+Computer | PLC+Computer | ||
| Transmission Agent | Chain + Mesh | Chain + Mesh | ||
| Max.Width Of PCB | 460mm | 460mm | ||
| Power For Warm Up | 45kw | 55kw | ||
| Power Consumption | 8kw | 10kw | ||
| Conveyor Height | 900+/-20mm | 900+/-20mm | ||
| Model | A600 | A600D | A800 | A800D |
| Dimension (L*W*H)mm | 3400x800x1350 | 4150x850x1350 | ||
| Weight | Approx.739KG | Approx.850KG | ||
| Number Of Heating Zones | Top6/Bottom6 | Top8/Bottom8 | ||
| Length Of Heating Zones | 2300mm | 2600mm | ||
| Power For Warm Up | 12kw | 15kw | ||
| Power Consumption | 5kw | 6kw | ||
| Transmission Agent | Mesh | Mesh+Rail | Mesh | Mesh+Rail |
| Fixed Rail Side | N/A | Front (Option:Rear) | N/A | Front (Option:Rear) |
| Control System | Instrument | PLC+Computer | Instrument | PLC+Computer |
❙ Customer Factory
▽ ETA Bulgaria customer - Battery Chargers and Adapters SMT production line
▽ ETA USA customer - LED production line
